Rubber bellows and flexible connectors are critical components for modern machinery and piping systems, providing flexibility, vibration damping, and protection against mechanical and environmental stress. Their adaptability, durability, and customizable design make them essential for industries ranging from automotive and HVAC to chemical processing and power generation.

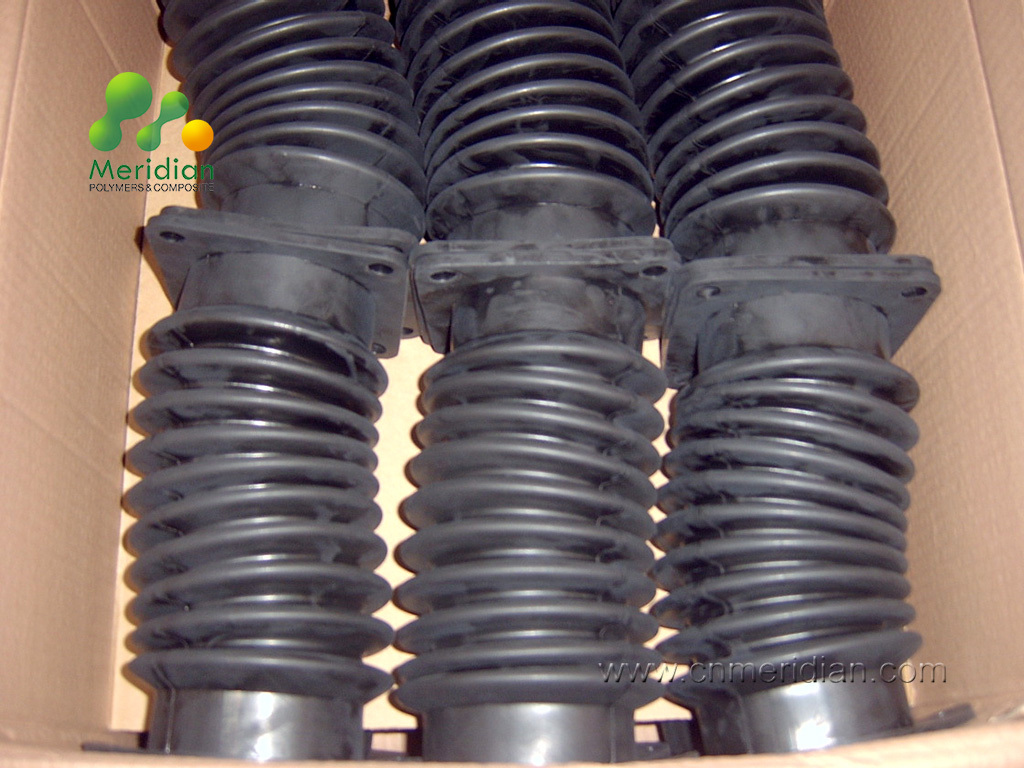

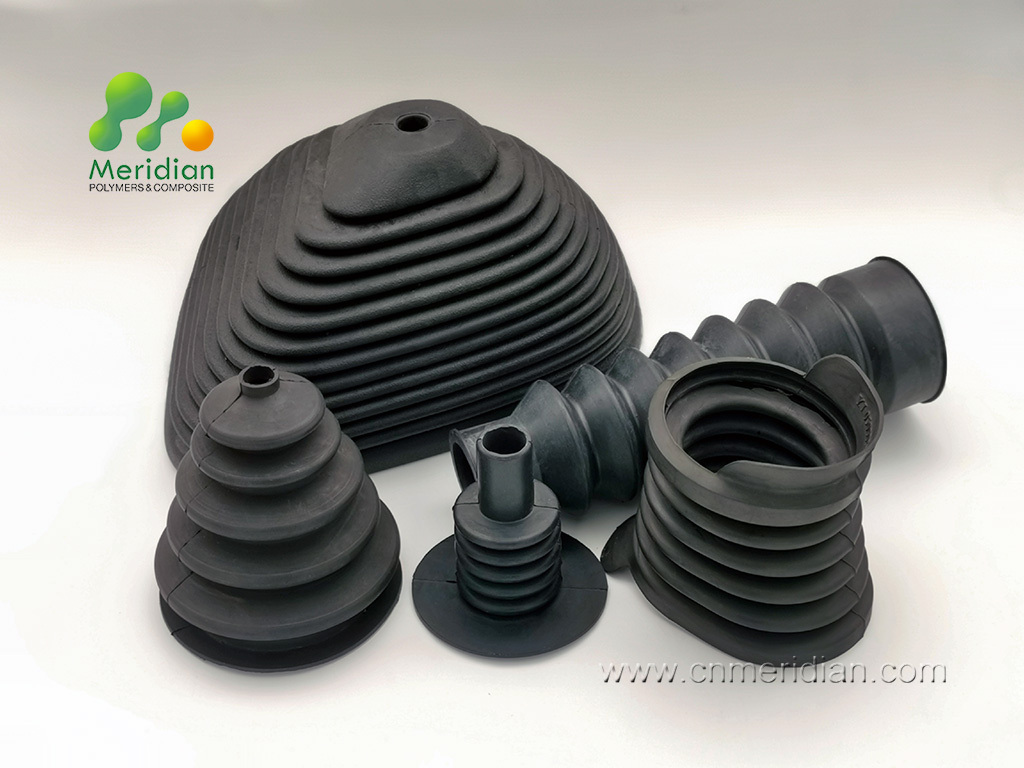

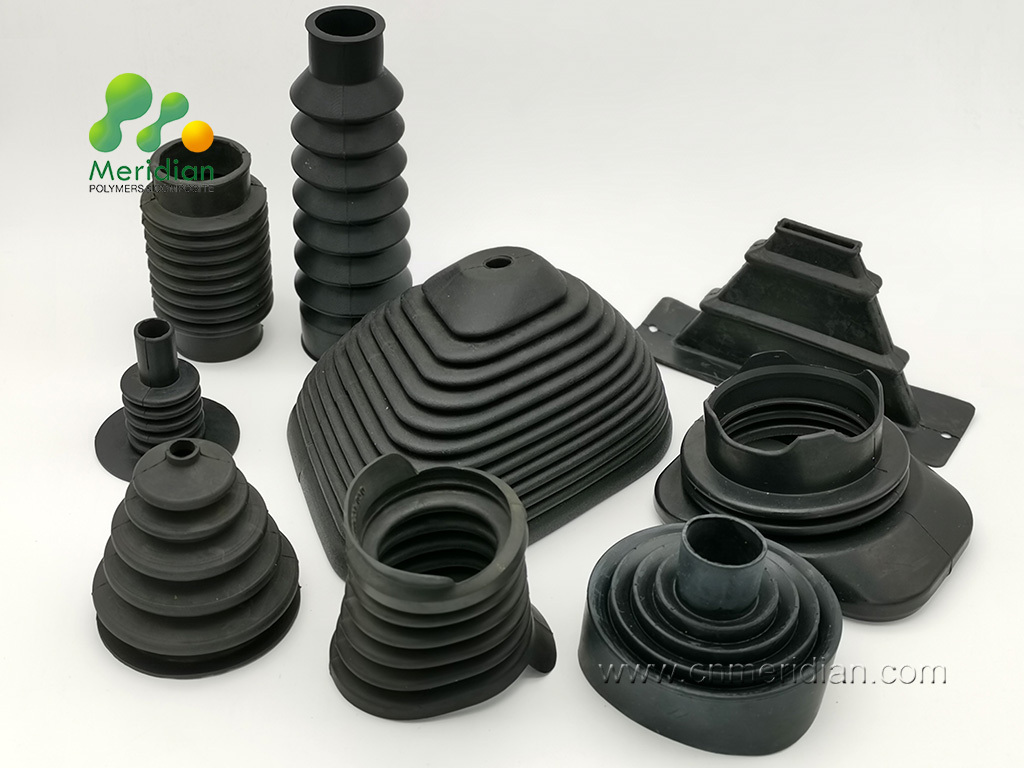

Rubber bellows Rubber bellows, often referred to as expansion joints, are flexible connectors made from elastomers like EPDM, neoprene, or nitrile rubber. They are engineered to absorb axial, lateral, and angular movements in piping systems, effectively compensating for thermal expansion, vibration, and misalignment.
Key Features:
- Flexibility: Rubber bellows can accommodate significant movements in multiple directions, making them suitable for dynamic systems.
- Vibration and Noise Dampening: Their construction helps in isolating vibrations and reducing noise transmission.
- Thermal Expansion Compensation: They can absorb changes in pipe length due to temperature variations.
- Misalignment Tolerance: Rubber bellows can correct minor misalignments in piping systems.
Common Applications:
- Industrial Piping Systems: Used in chemical processing, oil & gas, and water treatment industries to protect pipes and equipment from damage due to movement and vibration.
- HVAC Systems: Installed to absorb vibrations and thermal expansion, ensuring smooth operation.
- Marine and Shipbuilding: Employed to dampen engine vibrations and accommodate movement in ship piping systems.
Types:
- Single Sphere: Compact design suitable for systems with limited movement.
- Double Sphere: Offers higher flexibility and is ideal for systems with more dynamic movements.
- Spool Type: Longer design for large systems requiring significant movement accommodation.
Flexible ConnectorsFlexible connectors are designed to absorb low-amplitude, high-frequency vibrations, primarily used in exhaust systems and mechanical equipment. They are typically constructed from braided metal or fabric-reinforced elastomers.
Key Features:
- Vibration Isolation: Effective in isolating vibrations from equipment like pumps and engines.
- Limited Movement Accommodation: Designed to handle small-scale movements and misalignments.
- Durability: Built to withstand mechanical stresses and environmental factors.
Common Applications:
- Exhaust Systems: Installed to dampen engine vibrations and accommodate slight misalignments.
- Mechanical Equipment: Used to reduce vibration transmission between connected components.
- HVAC Systems: Employed to isolate vibrations from fans and compressors.
Comparison with Rubber Bellows:
While both rubber bellows and flexible connectors serve to absorb movement and vibration, rubber bellows offer greater flexibility and are suitable for handling larger movements and thermal expansion. Flexible connectors are more appropriate for isolating high-frequency vibrations and accommodating minor misalignments.
